Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 480(RGB)×234 |
|---|---|---|---|
| Active Area: | 154.08×87.05 Mm | Outline: | 174.5×105.5×11 Mm |
| Surface: | Clear, Hard Coating (3H) | Brightness: | 400 Cd/m² (Typ.) |
| Contrast Ratio: | 600:1 (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 40% |
| High Light: | nec tft lcd,nec lcd screen |
||
7.0 Inch NL4823BC37-05 Industrial Lcd Screen 154.08×87.05 mm High Brightness
NL4823BC37-05 Detail
| Panel Brand : | NEC |
| Panel Model : | NL4823BC37-05 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 480(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 154.08×87.05 mm |
| Outline : | 174.5×105.5×11 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
Company Strength:
1> ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 480(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.107×0.372 mm (H×V) |
| Pixel Pitch : | 0.321×0.372 mm (H×V) |
| Weight : | 205/215g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 154.08×87.05 mm (H×V) |
| Bezel Area : | 157.5×90.5 mm (H×V) |
| Outline Dimension : | 174.5×105.5 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

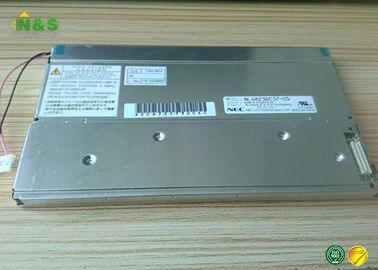

NL4823BC37-05 NEC LCD Panel Picture
