Product Details:
|
| Panel Brand: | PVI | Panel Model: | PD040QX1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.0 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
4.0 inch PD040QX1 PVI LCD Panel 81.12×60.84 mm Active Area
PD040QX1 Specification
| Panel Brand : | PVI |
| Panel Model : | PD040QX1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.0 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 81.12×60.84 mm |
| Outline : | 93×73.5 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 4S2P WLED Without Driver |
| Signal Interface : | TTL (1 ch, 8-bit) , 60 pins |
| Input Voltage : | 3.3/3.3/9.6/17.0/-8.0V (Typ.)(VCC1/VCC2/VDDA/VCG/VEE) |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
| Panel Size : | 4.0 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0775×0.2535 mm (H×V) |
| Pixel Pitch : | 0.2535×0.2535 mm (H×V) |
| Weight : | 46.0±5.0g |
| Surface : | Antiglare |
| Active Area : | 81.12×60.84 mm (H×V) |
| Bezel Area : | 84.32×64.04 mm (H×V) |
| Outline Dimension : | 93×73.5 mm (H×V) |
| Outline Depth : | 4.9 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes (3-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

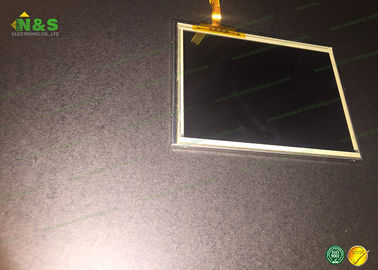

PD040QX1 Picture
