Product Details:
|
| Panel Brand: | Samsung | Panel Model: | LTP350QV-E06 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
3.5 inch LTP350QV-E06 Samsung LCD PanelNormally White with 53.64×71.52 mm
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
LTP350QV-E06 Specification
| Panel Brand : | SAMSUNG |
| Panel Model : | LTP350QV-E06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 53.64×71.52 mm |
| Outline : | 64.3×87.1×4.85 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 60 cd/m² (Typ.) |
| Contrast Ratio : | 80:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 40 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/40/25/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(DVDD/AVDD) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 47.0/52.0g (Typ./Max. |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Outline Dimension : | 64.3×87.1 mm (H×V) |
| Outline Depth : | 4.25/4.85 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
| AMS429QC12 | Samsung | 4.3" | 540×960 |
| AMS465GS53 | Samsung | 4.7" | 720×1280 |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

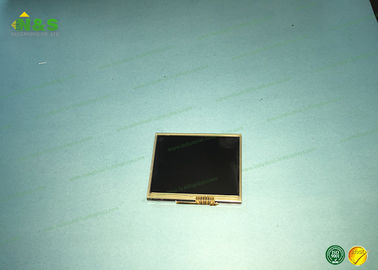

LTP350QV-E06 Picture
