Product Details:
|
| Panel Brand: | Samsung | Panel Model: | LTM240W1-L04 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | APVA, Normally Black, Transmissive |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||
LTM240W1-L04 Samsung LCD Panel 24.0 inch with 518.4×324 mm Active Area
LTM240W1-L04 Information
| Panel Brand : | SAMSUNG |
| Panel Model : | LTM240W1-L04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | APVA, Normally Black, Transmissive |
| Active Area : | 518.4×324 mm |
| Outline : | 569.1×368.4 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 270 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Min.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | OpenLDI , 43 pins |
| Input Voltage : | 5.0V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 5.65Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 569.1×368.4 mm (H×V) |
| Outline Depth : | 30.9 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMCE002 | Samsung | 2.4" | 240×320 |
| AMEJ006 | Samsung | 2.8" | 240×400 |
| AMCB004 | Samsung | 2.4" | 240×320 |
| AMS410GJ02-0 | Samsung | 4.1" | 480×800 |
| AMS397GE10-0 | Samsung | 4.0" | 480×800 |
| AMS331FY01 | Samsung | 3.3" | 480×800 |
| AMS347FF02 | Samsung | 3.5" | 360×640 |
| AMS347FF01 | Samsung | 3.5" | 360×640 |

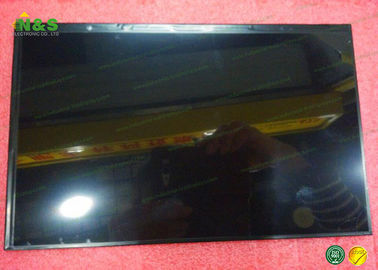

LTM240W1-L04 Picture
