Product Details:
|
| Panel Brand: | Kyocera | Panel Model: | KCG035QV1AA-G00 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | STN, Normally Black, Transmissive |
| High Light: | anti glare lcd screen,digital lcd display |
||
3.5 inch KCG035QV1AA-G00 Kyocera LCD Panel 71.02×53.26 mm Active Area
KCG035QV1AA-G00 Specification
| Panel Brand : | Kyocera |
| Panel Model : | KCG035QV1AA-G00 |
| Panel Type : | CSTN-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 71.02×53.26 mm |
| Outline : | 93×75.3×12.2 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 50:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 250/200 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/60/60 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL Optional |
| Signal Interface : | Parallel Data (8-bit) , 20 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VDD) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 114 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.074×0.222 mm (H×V) |
| Pixel Pitch : | 0.222×0.222 mm (H×V) |
| Weight : | 80.0g |
| Surface : | Glare (Haze 0%) |
| Active Area : | 71.02×53.26 mm (H×V) |
| Bezel Area : | 75.6×57.8 mm (H×V) |
| Outline Dimension : | 93×75.3 mm (H×V) |
| Outline Depth : | 8.0/12.2 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |

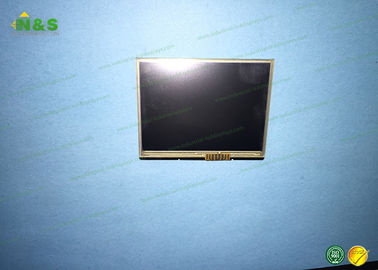

KCG035QV1AA-G00 Picture
