Product Details:
|
| Panel Brand: | HannStar | Panel Model: | HSD101PUW1-A00 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | HS-IPS, Normally Black, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
10.1 inch HSD101PUW1-A00 HannStar LCD Panel HS-IPS with 216.576×135.36 mm
HSD101PUW1-A00 Product Information
| Panel Brand : | HannStar |
| Panel Model : | HSD101PUW1-A00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | HS-IPS, Normally Black, Transmissive |
| Active Area : | 216.576×135.36 mm |
| Outline : | 227.72×147.8×4.55 mm |
| Surface : | Hard coating |
| Brightness : | 380 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 50% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | MIPI (4 data lanes) , 34 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Company Strength in LCD Screen Sourcing:
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 225 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0376×0.1128 mm (H×V) |
| Pixel Pitch : | 0.1128×0.1128 mm (H×V) |
| Weight : | 140g (Max.) |
| Surface : | Hard coating |
| Active Area : | 216.576×135.36 mm (H×V) |
| Outline Dimension : | 227.72×147.8 mm (H×V) |
| Outline Depth : | 2.25/4.55 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

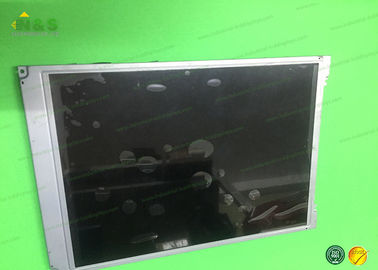

HSD101PUW1-A00 Picture
