HSD101PFW2-B00 HannStar LCD Panel 10.1 inch LCM 1024×600 200 500:1 262K WLED LVDS

HSD101PFW2-B00  HannStar  LCD  Panel 	10.1 inch	LCM 	1024×600  	200 	500:1 	262K 	WLED 	LVDS
HSD101PFW2-B00  HannStar  LCD  Panel 	10.1 inch	LCM 	1024×600  	200 	500:1 	262K 	WLED 	LVDS

Large Image :  HSD101PFW2-B00 HannStar LCD Panel 10.1 inch LCM 1024×600 200 500:1 262K WLED LVDS

Product Details:
Place of Origin: korea
Brand Name: HannStar
Certification: ISO9001
Model Number: HSD101PFW2-B00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

HSD101PFW2-B00 HannStar LCD Panel 10.1 inch LCM 1024×600 200 500:1 262K WLED LVDS

Description
Panel Brand: HannStar Panel Model: HSD101PFW2-B00
Panel Type: A-Si TFT-LCD , LCM Panel Size: 10.1 Inch
Resolution: 1024(RGB)×600 , WSVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd display module

HSD101PFW2-B00 HannStar LCD Panel 10.1 inch LCM 1024×600 200 500:1 262K WLED LVDS



HSD101PFW2-B00 Detail



Panel Brand : HannStar
Panel Model : HSD101PFW2-B00 9 Compatible model
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 10.1 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 222.72×125.28 mm
Outline : 235×143×5.2 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 50%
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
HSD043B8W2-C01 HannStar 4.3" 480×800
HSD070IDW3-A00-0299 HannStar 7.0" 800×480
HSD050F9W1-A00 HannStar 5.0" 480×272
HSD050FDW1-A00 HannStar 5.0" 800×480
HSD043F9W1-A00 HannStar 4.3" 480×272
HSD050B8W4-A00 HannStar 5.0" 480×854
HSD050B8W7-C00 HannStar 5.0" 480×854



Panel Size : 10.1 inch
Dot Resolution : 1024(RGB)×600 (WSVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 117 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0725×0.2088 mm (H×V)
Pixel Pitch : 0.2175×0.2088 mm (H×V)
Weight : 175/185g (Typ./Max.)
Surface : Antiglare, Hard coating (3H)
Active Area : 222.72×125.28 mm (H×V)
Bezel Area : 225.72×128.26 mm (H×V)
Outline Dimension : 235×143 mm (H×V)
Outline Depth : 4.9/5.2 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Our Advantages

  • We can be your professional Agent & Sourcing Line for the Hard-to-find LCD screen replacements.
  • 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
  • Welcome small, medium & big quantity orders.
  • 100% QC Inspection before Shipment.
  • After-sales-service With 12 Months Warranty for our LCD panels.

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

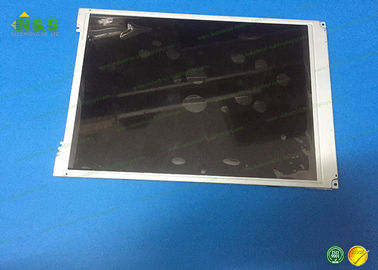

HSD101PFW2-B00 Picture



HSD101PFW2-B00  HannStar  LCD  Panel 	10.1 inch	LCM 	1024×600  	200 	500:1 	262K 	WLED 	LVDS 0
