HSD070IDW1-E11 7.0 inch HannStar LCD PanelNormally White LCM 800×480 450 500:1 262K/16.2M WLED TTL

HSD070IDW1-E11  	7.0 inch  HannStar  LCD  PanelNormally White LCM 	800×480  	450 	500:1 	262K/16.2M 	WLED 	TTL
HSD070IDW1-E11  	7.0 inch  HannStar  LCD  PanelNormally White LCM 	800×480  	450 	500:1 	262K/16.2M 	WLED 	TTL

Large Image :  HSD070IDW1-E11 7.0 inch HannStar LCD PanelNormally White LCM 800×480 450 500:1 262K/16.2M WLED TTL

Product Details:
Place of Origin: korea
Brand Name: HannStar
Certification: ISO9001
Model Number: HSD070IDW1-E11
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

HSD070IDW1-E11 7.0 inch HannStar LCD PanelNormally White LCM 800×480 450 500:1 262K/16.2M WLED TTL

Description
Panel Brand: HannStar Panel Model: HSD070IDW1-E11
Panel Type: A-Si TFT-LCD , LCM Panel Size: 7.0 Inch
Resolution: 800(RGB)×480 , WVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd panel

HSD070IDW1-E11 7.0 inch HannStar LCD PanelNormally White LCM 800×480 450 500:1 262K/16.2M WLED TTL



HSD070IDW1-E11 Specification



Panel Brand : HannStar
Panel Model : HSD070IDW1-E11
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 153.6×86.64 mm
Outline : 164.9×100×6 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50%
Response Time : 5/20 (Typ.)(Tr/Td);
Viewing Angle : 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S9P WLED Without Driver
Signal Interface : TTL (1 ch, 6/8-bit) , 60 pins
Input Voltage : 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL)



Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.



Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 134 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.064×0.1805 mm (H×V)
Pixel Pitch : 0.192×0.1805 mm (H×V)
Weight : 170g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 153.6×86.64 mm (H×V)
Bezel Area : 156.0×90.1 mm (H×V)
Outline Dimension : 164.9×100 mm (H×V)
Outline Depth : 5.7±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without



Quality Control:

  1. Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

  1. Function Inspection

Make sure all functions are 100% tested ok



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
HSD038F7N1-A02 HannStar 3.8" 320×480
HSD036FAW1-A02 HannStar 3.6" 240×400
HSD024F3N5-A10 HannStar 2.4" 240×320
HSD040F8W6-D00 HannStar 4.0" 480×800
HSD055FHW2-D00 HannStar 5.5" 720×1280
HSD055BHW3-D00 HannStar 5.5" 720×1280
HSD040I3N1-B00-0299 HannStar 4.0" 320×240
HSD023F3N1-A01 HannStar 2.3" 320×240
HSD018F1N9-A01 HannStar 1.8" 128×160

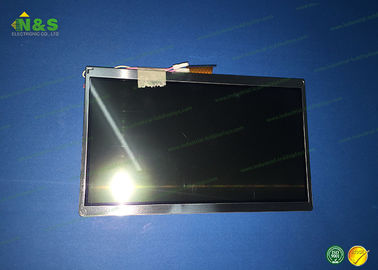

HSD070IDW1-E11 Picture



HSD070IDW1-E11  	7.0 inch  HannStar  LCD  PanelNormally White LCM 	800×480  	450 	500:1 	262K/16.2M 	WLED 	TTL 0
