CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600

CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600
CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600 CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600

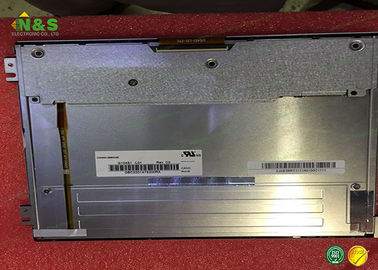

Large Image :  CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600

Product Details:
Place of Origin: Japan
Brand Name: CHIMEI INNOLUX LCD Displays
Certification: ISO9001
Model Number: G104S1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Packaging Details: Standard packing
Delivery Time: 1-2days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability: 500PCS/DAY

CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600

Description
Product Number: G104S1-L01 Resolution: 800×600
SIZE: 10.4" Backlight: WLED
Brightness: 400 C/R: 700:1
High Light:

lcd display panel

,

innolux lcd screen

CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600



Active Area : 211.2×158.4 mm
Outline : 243×184×7.3 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 53%
Response Time : 5.0/11.0 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)





CHIMEI INNOLUX G104S1-L01 Basic Information


Panel Brand : Chimei
Panel Model : G104S1-L01
Panel Type : a-Si TFT-LCD , LCM
Application :
Operating Temperature : -20 ~ 70 °C
Storage Temperature : -40 ~ 80 °C
RoHS : ROHS





CHIMEI INNOLUX G104S1-L01 Mechanical Features



Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 355g (Typ.)





As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  • AUO LCD Screen
  • Samsung LCD Display
  • LG LCD Screen replacements
  • Sharp LCD panels &Chimei LCD Parts.
  • Innolux LCD Modules & BOE LCD Screen.



We work closely with more than 540 enterprises all over the world, including large OEM factories, franchise distributors & well-known independent distributors in LCD screen replacements, We also cooperate with more than 40 countries or area resources: United states, Italy, Singapore, Korea, Taiwan, Germany, Malaysia & Japan, etc, we try our best to offer reliable sourcing at competitive price directly.



Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

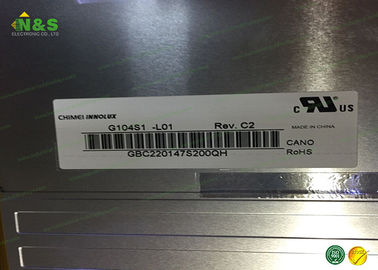

CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600 0CHIMEI INNOLUX 10.4 inch TFT LCD Screen G104S1-L01 SVGA 800(RGB)*600 1
