Product Details:
|
Product Number: | G190SF01 V0 | Resolution: | 1680×342 |
---|---|---|---|
C/R: | 2000:1 | Backlight: | WLED |
Brightness: | 300 | SIZE: | 19 |
High Light: | auo lcd screen,auo lcd display |

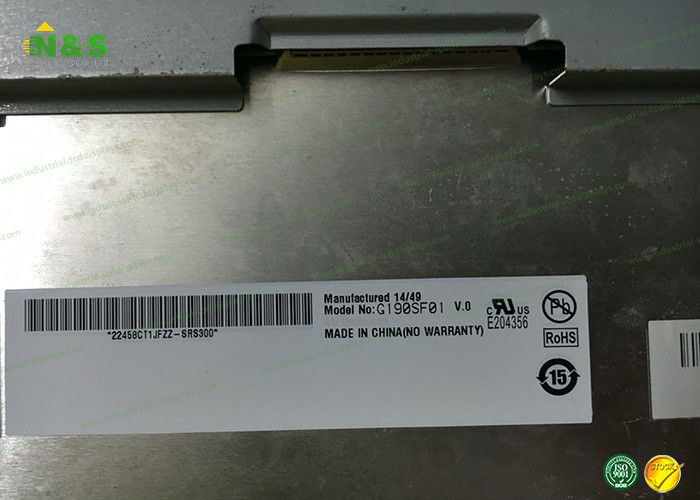

AUO G190SF01 V0 19" 1680×342 TFT LCD PANEL M190EG01 V.0 1208
Panel Brand : AUO
Panel Model : G190SF01 V0
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 19.0 inch (1/3 cut of 22.0")
Resolution : 1680(RGB)×342
Panel Size : 19.0 inch (1/3 cut of 22.0")
Dot Resolution : 1680(RGB)×342
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 90 PPI
Aspect Ratio : >3:1 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.094×0.282 mm (H×V)
Pixel Pitch : 0.282×0.282 mm (H×V)
Weight : 1.50Kgs (Typ.)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 2000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
1).More competitive price! As aprofessional LCD Distributor,we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee,100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time,so we could promise save much more money on the shipping cost and betterservice is offered!
5).Best sale-service!Professional team to service with you before sale, on sale & after service.
