Product Details:
|
| Product Number: | LM240WU7-SLB3 | Resolution: | 1920×1200 |
|---|---|---|---|
| C/R: | 1000:1 | Backlight: | CCFL |
| Brightness: | 400 | SIZE: | 25.5" |
| High Light: | lg display panel,lg lcd display |
||

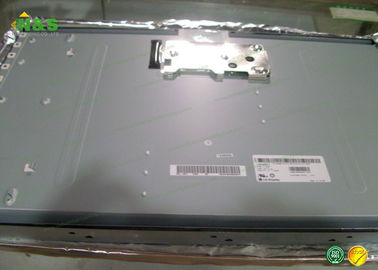

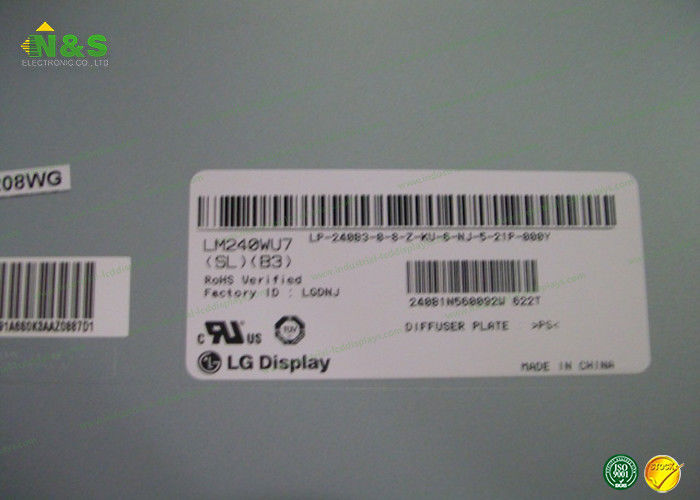

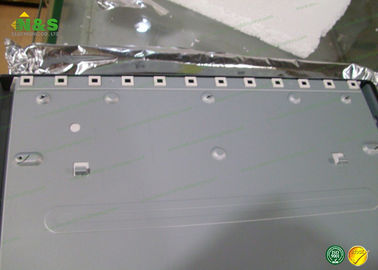

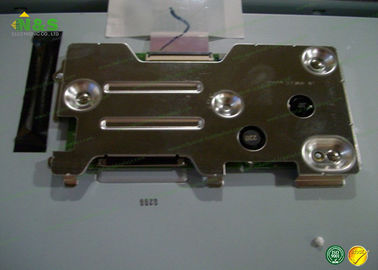

LM240WU7-SLB3 24-inch 1920*1200 LCD Display Screen Modules panel High resolution
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We work closely with more than 540 enterprises all over the world, including large OEM factories, franchise distributors & well-known independent distributors in LCD screen replacements, We also cooperate with more than 40 countries or area resources: United states, Italy, Singapore, Korea, Taiwan, Germany, Malaysia & Japan, etc, we try our best to offer reliable sourcing at competitive price directly.
| Panel Size : | 24" |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.80Kgs (Typ.) |
'
Display Mode : e-IPS, Normally Black, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 7 (Typ.)(G to G)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.33 (Max.)(9 points)
