Product Details:
|
| Panel Brand: | CPT | Panel Model: | CLAA150XP07CW |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 15.0 Inch |
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd panel |
||
Antiglare 15.0 inch CLAA150XP07CW CPT LCD Panel LCM 1024×768 350 700:1 16.7M WLED LVDS
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
CLAA150XP07CW Detail
| Panel Brand : | CPT |
| Panel Model : | CLAA150XP07CW |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 326.5×253.5×11.5 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 66% |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Max.) |
| Surface : | Antiglare |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 11.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAG024G401 AX | CPT | 2.4" | 240×320 |
| CLAG032HA01A0 | CPT | 3.2" | 320×480 |
| CLAG030JB01A0 | CPT | 3.0" | 240×400 |
| CLAG028GE21A0 | CPT | 2.8" | 240×320 |
| CLAD035HA01 00XA | CPT | 3.5" | 320×480 |
| CLAD032JA01X0 | CPT | 3.2" | 240×400 |
| CLAF050LH41 TXX | CPT | 5.0" | 540×960 |
| CLAN050LH61 1XE | CPT | 5.0" | 540×960 |
| CLAA030HA21DE | CPT | 3.0" | 960×480(dot) |
| CLAP070NQ01 XN | CPT | 7.0" | 1024×600 |

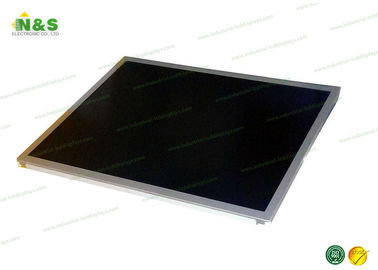

CLAA150XP07CW Picture
