Product Details:
|
| Active Area: | 334.08×200.45 Mm | Outline: | 358×226 Mm |
|---|---|---|---|
| Contrast Ratio: | 700:1 (Typ.) | Brightness: | 470 Cd/m² (Typ.) |
| High Light: | nec tft lcd,nec lcd screen |
||
NL12876BC26-25 NEC LCD Panel 15.3 inch LCM 1280×768 470 700:1 16.7M CCFL LVDS
NL12876BC26-25 Information
| Panel Brand : | NEC |
| Panel Model : | NL12876BC26-25 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.3 inch |
| Resolution : | 1280(RGB)×768 , WXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 334.08×200.45 mm |
| Outline : | 358×226 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 470 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 40% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packing & Delivery for our LCD Screen Panel Replacements:
| Panel Size : | 15.3 inch |
| Dot Resolution : | 1280(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 97 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.087×0.261 mm (H×V) |
| Pixel Pitch : | 0.261×0.261 mm (H×V) |
| Weight : | 1.27/1.40Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 334.08×200.45 mm (H×V) |
| Bezel Area : | 336.2×202.8 mm (H×V) |
| Outline Dimension : | 358×226 mm (H×V) |
| Outline Depth : | 15.8/16.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |

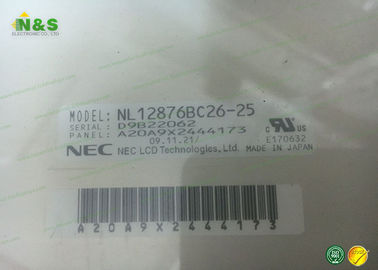

NL12876BC26-25 NEC LCD Panel Picture
