Product Details:
|
| Product Number: | G150XGE-L05 | Resolution: | 1024×768 |
|---|---|---|---|
| Size: | 15.0" | Brightness: | 250 |
| C/R: | 700:1 | Backlight: | WLED |
| High Light: | tft lcd display,lcd display panel |
||

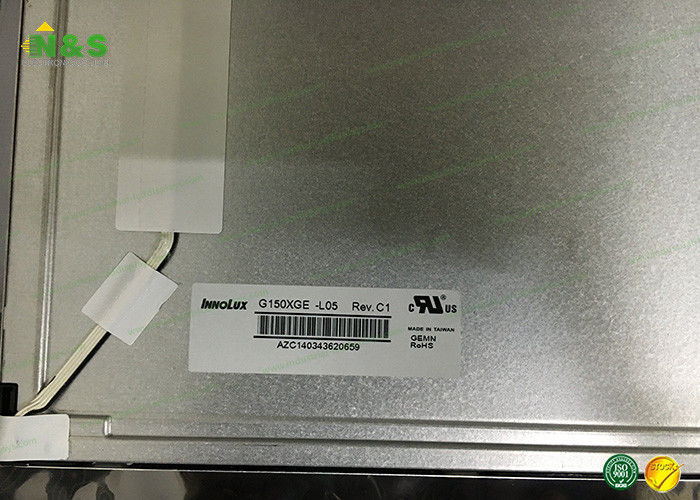

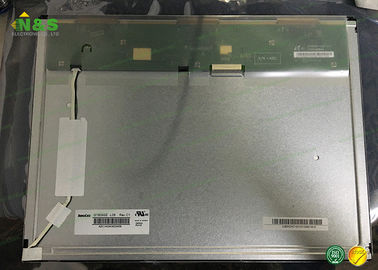

LCD Display Screen Panel For G150XGE-L05 Rev.C1 LED Backlight
Panel Brand : CHIMEI INNOLUX
Panel Model : G150XGE-L05
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Outline : 326.5×253.5×12 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 55%
Response Time : 5/11 (Typ.)(Tr/Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
| Panel Brand : | Chimei Innolux |
|---|---|
| Panel Model : | G150XGE-L05 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : | |
| Operating Temperature : | -30 ~ 70 °C |
| Storage Temperature : | -40 ~ 70 °C |
| RoHS : | ROHS |
| Specific Feature : |
|
| Remarks : | PSWG Compatible |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
What’s your advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
