17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm
17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm

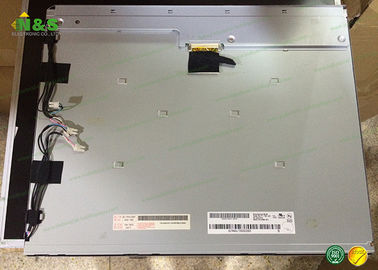

Large Image :  17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: M170EG01 VA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm

Description
Panel Size :: 17.0 Inch Resolution :: 1280(RGB)×1024 , SXGA
Active Area :: 337.92×270.336 Mm Outline :: 358.5×296.5×17.5 Mm
Surface :: Antiglare, Hard Coating (3H) Contrast Ratio :: 700:1 (Typ.)
High Light:

auo lcd screen

,

auo lcd display

17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M 358.5×296.5×17.5 mm



M170EG01 VA  DETAIL



Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.



Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.



Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 2.25Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm 0 17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm 1 TN, Normally White, Transmissive
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max)(9 points)
Sunlight Readable : N

Vertical Frequency : 60Hz
Reverse Scan :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm 2 No
Total Power Consumption :17.0 inch M170EG01 VA AUO LCM 1280×1024 300 700:1 16.2M   358.5×296.5×17.5 mm 3 25.8 W(Typ.)



Here comes our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
H163QLN01.1 AUO 1.63" 320×320
H497TLB01 AUO 5.0" 720×1280
H497TLB01.0 AUO 5.0" 720×1280
M350DVR01.1 CELL AUO 35.0" 2560×1080
T320HVN02.1 CELL AUO 31.5" 1920×1080
M270DAN01.1 CELL AUO 27.0" 2560×1440
T500QVN03.3 CELL AUO 50" 3840×2160
T500QVN03.0 CELL AUO 50" 3840×2160
H497DAN02.1 AUO 5.0" 1080×1920
H546DAN07.3 AUO 5.5" 1080×1920
