Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ097L1JY01 |
|---|---|---|---|
| Panel Type: | IGZO TFT-LCD , LCM | Panel Size: | 9.0 Inch |
| Resolution: | 2048(RGB)×1536 , QXGA | Display Mode: | Normally Black, Transflective |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
Normally Black LQ097L1JY01 Sharp LCD Panel 9.7 inch with 196.608×147.456 mm
LQ097L1JY01 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ097L1JY01 |
| Panel Type : | IGZO TFT-LCD , LCM |
| Panel Size : | 9.7 inch |
| Resolution : | 2048(RGB)×1536 , QXGA |
| Display Mode : | Normally Black, Transmissive |
| Active Area : | 196.608×147.456 mm |
| Surface : | |
| Brightness : | |
| Contrast Ratio : | |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | |
| Viewing Angle : | |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | eDP (4 Lanes) |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
| Panel Size : | 9.7 inch |
| Dot Resolution : | 2048(RGB)×1536 (QXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 264 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.032×0.096 mm (H×V) |
| Pixel Pitch : | 0.096×0.096 mm (H×V) |
| Active Area : | 196.608×147.456 mm (H×V) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

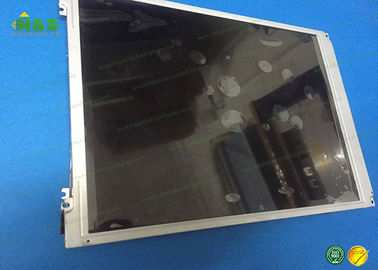

LQ097L1JY01 Picture
