NL12876BC15-01 NEC LCD Panel 8.9 inch with 193.92×116.352 mm Active Area

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

NL12876BC15-01 NEC LCD Panel 8.9 inch with 193.92×116.352 mm Active Area

NL12876BC15-01 NEC LCD Panel  8.9 inch with 193.92×116.352 mm Active Area
NL12876BC15-01 NEC LCD Panel  8.9 inch with 193.92×116.352 mm Active Area

Large Image :  NL12876BC15-01 NEC LCD Panel 8.9 inch with 193.92×116.352 mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: NEC
Certification: ISO9001
Model Number: NL12876BC15-01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

NL12876BC15-01 NEC LCD Panel 8.9 inch with 193.92×116.352 mm Active Area

Description
Outline: 209.2×130.3×7.7 Mm Active Area: 193.92×116.352 Mm
Brightness: 280 Cd/m² (Typ.) Contrast Ratio: 500:1 (Typ.)
Response Time: 6/2 (Typ.)(Tr/Td) Frequency: 60Hz
High Light:

nec lcd touch screen

,

nec tft lcd

NL12876BC15-01 NEC LCD Panel 8.9 inch with 193.92×116.352 mm Active Area



NL12876BC15-01 Detail

Panel Brand : NEC
Panel Model : NL12876BC15-01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.9 inch
Resolution : 1280(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Active Area : 193.92×116.352 mm
Outline : 209.2×130.3×7.7 mm
Surface : Clear, Hard coating (3H)
Brightness : 280 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 56%
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 11S3P WLED Without Driver
Signal Interface : LVDS (1 ch, 6-bit) , 30 pins
Input Voltage : 3.3V (Typ.)



Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.



FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.



Panel Size :

8.9 inch
Dot Resolution : 1280(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 167 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0505×0.1515 mm (H×V)
Pixel Pitch : 0.1515×0.1515 mm (H×V)
Weight : 265g (Typ.)
Surface : Clear, Hard coating (3H)
Active Area : 193.92×116.352 mm (H×V)
Bezel Area : 196.52×118.95 mm (H×V)
Outline Dimension : 209.2×130.3 mm (H×V)
Outline Depth : 7.2±0.5 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
PW090XUA E Ink 9.0" 640×220
PW090XU8 E Ink 9.0" 640×220
PW090XU7 E Ink 9.0" 640×220
PW090XU6 E Ink 9.0" 640×220
PW090XSA E Ink 9.0" 640×220
PW090XS8 E Ink 9.0" 640×220
PW084XU2 E Ink 8.4" 480×234
PW084XS6 E Ink 8.4" 480×234
PW084XS3 E Ink 8.4" 480×234
PW080XU8 E Ink 8.0" 480×220

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

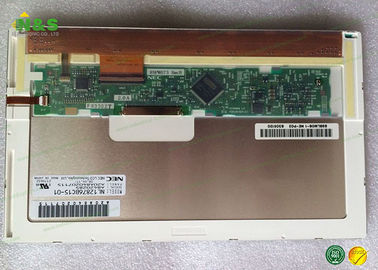

NL12876BC15-01 NEC LCD Panel Picture
