17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M Of Desktop Monitor

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M Of Desktop Monitor

17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M   Of Desktop Monitor
17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M   Of Desktop Monitor

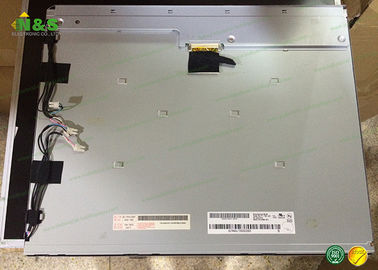

Large Image :  17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M Of Desktop Monitor

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: M170EG01 V9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M Of Desktop Monitor

Description
Panel Size :: 17.0 Inch Active Area :: 337.92×270.336 Mm
Surface :: Glare (Haze 0%), Hard Coating (2H) Brightness :: 420 Cd/m² (Typ.)
High Light:

auo display panel

,

auo lcd display

17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M Of Desktop Monitor



M170EG01 V9  Specification



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.



Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.90Kgs (Typ.)
Surface : Glare (Haze 0%), Hard coating (2H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.6×274.0 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 17.0±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Display Mode :17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M   Of Desktop Monitor 0 TN, Normally White, Transmissive
Brightness : 420 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.2M (6-bit + FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 70/70/70/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.33 (Typ./Max)(9 points)
Sunlight Readable : N

Vertical Frequency : 60Hz
Reverse Scan :17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M   Of Desktop Monitor 1 No
Total Power Consumption :17.0 inch M170EG01 V9 AUO LCM 1280×1024 420 500:1 16.2M   Of Desktop Monitor 2 25.8 W(Typ.)
