Product Details:
|
Product Number: | G156XW01 V1 | Brand: | AUO LCD Panel |
---|---|---|---|
Size Of Panel: | 15.6" | Resolution: | 1366×768 |
C/R: | 500:1 | Brightness: | 400 CD/M2 |
High Light: | auo display panel,auo lcd screen |

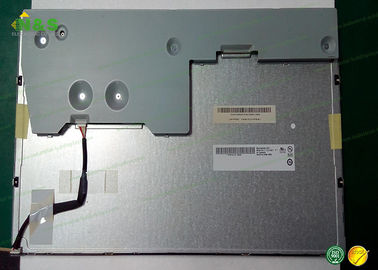

15.6" TFT LCD PANEL 1366X768 16:9 LVDS SVGA DISPLAY SCREEN G156XW01 V1
Panel Brand : AUO

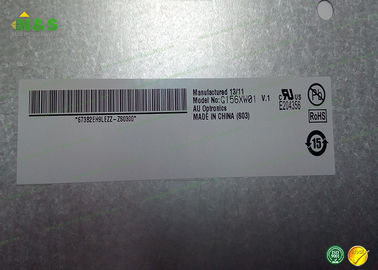

Panel Model : G156XW01 V1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.6 inch
Resolution : 1366(RGB)×768 , WXGA
Display Mode : TN, Normally White, Transmissive
Outline : 363.8×215.9×17.35 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.2M (6-bit + FRC) , CIE1931 70%
Response Time : 6/2 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 1.25/1.35Kgs (Typ./Max.)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 347.54×196.83 mm (H×V)
Outline Dimension : 363.8×215.9 mm (H×V)
Outline Depth : 16.85±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
