Product Details:
|
| Panel Size: | 6.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 129.6×97.45 Mm | Panel Type: | A-Si TFT-LCD , LCM |
| High Light: | tft lcd panel,tft lcd display module |
||
PD064VXB 6.4 inch TFT LCD Module Antiglare LCM 640×480 1200 500:1 262K WLED TTL
PD064VXB Specification
| Panel Size : | 6.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2030 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2030 mm (H×V) |
| Weight : | 265±15g |
| Surface : | Antiglare |
| Active Area : | 129.6×97.45 mm (H×V) |
| Bezel Area : | 134.8×101.8 mm (H×V) |
| Outline Dimension : | 146.4×113 mm (H×V) |
| Outline Depth : | 10.6/15.34 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 1200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.330; Wy:0.380 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | Y |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |

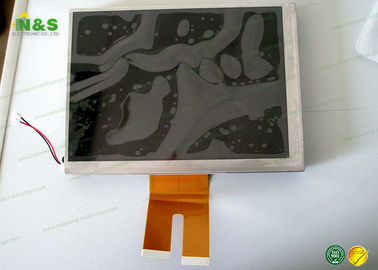

PD064VXB Picture
