TV080WXM-NL0 BOE LCD Panel 8.0 inch with 107.64×172.224 mm Active Area

TV080WXM-NL0 BOE LCD  Panel 	8.0 inch with  	107.64×172.224 mm Active Area
TV080WXM-NL0 BOE LCD  Panel 	8.0 inch with  	107.64×172.224 mm Active Area

Large Image :  TV080WXM-NL0 BOE LCD Panel 8.0 inch with 107.64×172.224 mm Active Area

Product Details:
Place of Origin: korea
Brand Name: BOE
Certification: ISO9001
Model Number: TV080WXM-NL0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

TV080WXM-NL0 BOE LCD Panel 8.0 inch with 107.64×172.224 mm Active Area

Description
Panel Brand: BOE Panel Model: TV080WXM-NL0
Panel Type: A-Si TFT-LCD , LCM Panel Size: 8.0 Inch
Resolution: 800(RGB)×1280 , WXGA Display Mode: ADS, Normally Black, Transmissive
High Light:

tft lcd screen

,

tft lcd panel


TV080WXM-NL0 BOE LCD Panel 8.0 inch with 107.64×172.224 mm Active Area

TV080WXM-NL0 Detail

Panel Brand :BOE
Panel Model :TV080WXM-NL0
Panel Type :a-Si TFT-LCD , LCM
Panel Size :8.0 inch
Resolution :800(RGB)×1280 , WXGA
Display Mode :ADS, Normally Black, Transmissive
Active Area :107.64×172.224 mm
Outline :114.8×184.7×2.7 mm
Surface :Antiglare (Haze 25%)
Brightness :350 cd/m² (Typ.)
Contrast Ratio :800:1 (Typ.)
Display Colors :16.7M (8-bit) , CIE1931 60%
Response Time :25 (Typ.)(Tr+Td)
Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :7S3P WLED Without Driver
Signal Interface :MIPI (4 data lanes) , 39 pins
Input Voltage :1.8/3.3V (Typ.)(VCI/VDDI)


Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.



Panel Size :8.0 inch
Dot Resolution :800(RGB)×1280 (WXGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :188 PPI
Aspect Ratio :10:16 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.04485×0.13455 mm (H×V)
Pixel Pitch :0.13455×0.13455 mm (H×V)
Weight :120g (Typ.)
Surface :Antiglare (Haze 25%)
Active Area :107.64×172.224 mm (H×V)
Outline Dimension :114.8×184.7 mm (H×V)
Outline Depth :2.55±0.15 mm
Holes & Brackets :Without
Landscape or Portrait :Portrait type
Touch Panel :Without


FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
MV236FHB-N10BOE24.0"1920×1080
HR270QH3-100BOE27.0"2560×1440
BF045WVQ-401BOE4.5"480×854
BV055HDE-N40BOE5.5"720×1280
TV080WXB-NV0BOE8.0"800×1280
AV080WVB-NW2BOE8.0"800×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

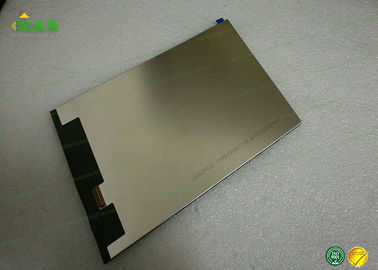

TV080WXM-NL0 Picture

TV080WXM-NL0 BOE LCD  Panel 	8.0 inch with  	107.64×172.224 mm Active Area 0
