TM150TDSG52 Tianma LCD Panel 15.0 inch with 304.128×228.096 mm Active Area

TM150TDSG52 Tianma  LCD  Panel  	15.0 inch with  	304.128×228.096 mm Active Area
TM150TDSG52 Tianma  LCD  Panel  	15.0 inch with  	304.128×228.096 mm Active Area

Large Image :  TM150TDSG52 Tianma LCD Panel 15.0 inch with 304.128×228.096 mm Active Area

Product Details:
Place of Origin: korea
Brand Name: Tianma
Certification: ISO9001
Model Number: TM150TDSG52
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

TM150TDSG52 Tianma LCD Panel 15.0 inch with 304.128×228.096 mm Active Area

Description
Panel Brand: Tianma Panel Model: TM150TDSG52
Panel Type: A-Si TFT-LCD , LCM Panel Size: 15.0 Inch
Resolution: 1024(RGB)×768 , XGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd panel

,

tft lcd display module

TM150TDSG52 Tianma LCD Panel 15.0 inch with 304.128×228.096 mm Active Area



TM150TDSG52 Specification

Panel Brand : TIANMA
Panel Model : TM150TDSG52
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.0 inch
Resolution : 1024(RGB)×768 , XGA
Display Mode : TN, Normally White, Transmissive
Active Area : 304.128×228.096 mm
Outline : 326.5×253.5×12.1 mm
Surface : Antiglare
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 60%
Response Time : 3/5 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6/8-bit) , 20 pins
Input Voltage : 3.3V (Typ.)



Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.
Panel Size : 15.0 inch
Dot Resolution : 1024(RGB)×768 (XGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 85 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.099×0.297 mm (H×V)
Pixel Pitch : 0.297×0.297 mm (H×V)
Weight : 1.00Kgs (Typ.)
Surface : Antiglare
Active Area : 304.128×228.096 mm (H×V)
Bezel Area : 307.4×231.3 mm (H×V)
Outline Dimension : 326.5×253.5 mm (H×V)
Outline Depth : 11.8±0.3 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



FAQ:

1. Q: Are you a manufacturer or trading company?

A: We are a trading company who has been specializing in marketing LCD display for 6 years.

2. Q:What’s the quality of your products?

A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.

3. Q: What is your after-sale service?

A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

4. Q: What is your MOQ?

A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

5. Q: When will you make the delivery?

A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.

6. Q: what brand of screen could we handle?

A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
TM240160XCFWGRA Tianma 2.2" 240×160
TM128128F6CCWGWC1 Tianma 1.44" 128×128
TM12864G3CCWGWA-1 Tianma 2.4" 128×64
TM050XYSP02 Tianma 5.0" 540×960
TM050JYHN11-00 Tianma 5.0" 720×1280
TM055JYSP08 Tianma 5.5" 720×1280
TM040XYHP01 Tianma 4.0" 640×1136
TM055JYSP03 Tianma 5.5" 720×1280

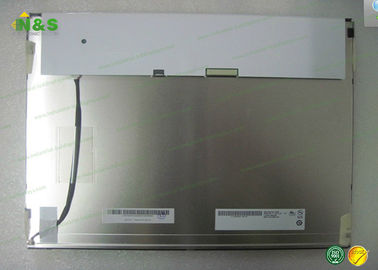

TM150TDSG52 Picture
