TM050RBH01 Tianma LCD Panel 5.0 inch with 108×64.8 mm Active Area

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

TM050RBH01 Tianma LCD Panel 5.0 inch with 108×64.8 mm Active Area

TM050RBH01 Tianma  LCD  Panel  	5.0 inch with  	108×64.8 mm Active Area
TM050RBH01 Tianma  LCD  Panel  	5.0 inch with  	108×64.8 mm Active Area TM050RBH01 Tianma  LCD  Panel  	5.0 inch with  	108×64.8 mm Active Area

Large Image :  TM050RBH01 Tianma LCD Panel 5.0 inch with 108×64.8 mm Active Area

Product Details:
Place of Origin: korea
Brand Name: Tianma
Certification: ISO9001
Model Number: TM050RBH01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

TM050RBH01 Tianma LCD Panel 5.0 inch with 108×64.8 mm Active Area

Description
Panel Brand: Tianma Panel Model: TM050RBH01
Panel Type: A-Si TFT-LCD , LCM Panel Size: 5.0 Inch
Resolution: 800(RGB)×480 , WVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd display module

TM050RBH01 Tianma LCD Panel 5.0 inch with 108×64.8 mm Active Area



TM050RBH01 Specification



Panel Brand : TIANMA
Panel Model : TM050RBH01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 108×64.8 mm
Outline : 120.7×75.8×6.3 mm
Surface : Antiglare
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 450:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 6S3P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 3.3V (Typ.)



Panel Size : 5.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 188 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.045×0.135 mm (H×V)
Pixel Pitch : 0.135×0.135 mm (H×V)
Weight : 76.3g
Surface : Antiglare
Active Area : 108×64.8 mm (H×V)
Bezel Area : 111.1×67.9 mm (H×V)
Outline Dimension : 120.7×75.8 mm (H×V)
Outline Depth : 4.4/6.30 (Typ./Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
TM128128F6CCWGWC1 Tianma 1.44" 128×128
TM12864G3CCWGWA-1 Tianma 2.4" 128×64
TM050XYSP02 Tianma 5.0" 540×960
TM050JYHN11-00 Tianma 5.0" 720×1280
TM055JYSP08 Tianma 5.5" 720×1280
TM040XYHP01 Tianma 4.0" 640×1136
TM055JYSP03 Tianma 5.5" 720×1280
TM055JYHP03 Tianma 5.5" 720×1280
TM055JYHP01 Tianma 5.5" 720×1280

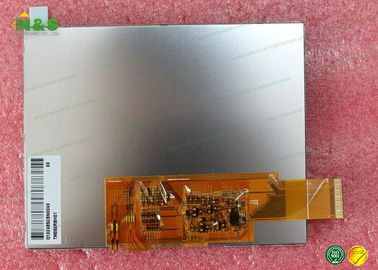

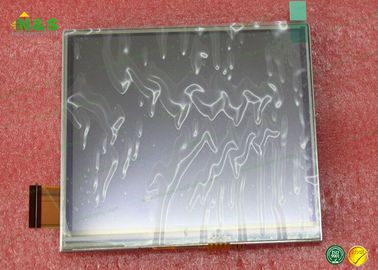

TM050RBH01 Picture
