Product Details:
|
| Panel Size: | 2.2 Inch | Resolution: | 240(RGB)×320 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 6-bit) + SPI , 39 Pins |
| High Light: | black and white lcd display,lcd display white screen |
||
| Panel Size : | 2.2 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 180 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.047×0.141 mm (H×V) |
| Pixel Pitch : | 0.141×0.141 mm (H×V) |
| Weight : | 12.74g |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 33.84×45.12 mm (H×V) |
| Bezel Area : | 36.04×47.32 mm (H×V) |
| Outline Dimension : | 40.6×56.6 mm (H×V) |
| Outline Depth : | 2.7 (Typ.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
|
Display Mode : |
ECB, Normally White, Transflective |
| Brightness : | 90 cd/m² (Typ.) |
| Contrast Ratio : | 120 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 30% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/45/48/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.300 |
| White Variation : | 1.25 (Typ.)(9 points) |
| Reflectance Ratio : | 6.8% (Typ.) |
| Sunlight Readable : | Y |
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM128128A4KFWGWC67-1 | Tianma | 1.45" | 128×128 |
| TM9867DKFWUGWC9 | Tianma | 1.3" | 98×67 |
| TM050XYSA01 | Tianma | 5.0" | 540×960 |
| TM035HYHT1 | Tianma | 3.5" | 320×240 |
| TM080XSZ00 | Tianma | 8.0" | 1280×768 |
| TM046JYHP01 | Tianma | 4.7" | 720×1280 |
| TM014EYH01 | Tianma | 1.45" | 128×128 |
| TM045YYH03 | Tianma | 4.5" | 480×854 |
| TM046JYHP02 | Tianma | 4.7" | 720×1280 |
| TM045YYSA02 | Tianma | 4.5" | 480×854 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

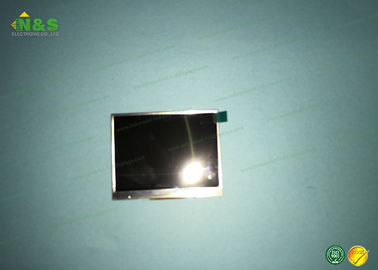

TM022HDHT1-00 Picture
