Product Details:
|
| Panel Brand: | Tianma | Panel Model: | TM040YDHG32 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.0 Inch |
| Resolution: | 480(RGB)×800 , WVGA | Display Mode: | IPS, Normally Black, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
4.0 inch TM040YDHG32 Tianma LCD Panel Hard coating with 51.84×86.4 mm
TM040YDHG32 Detail
| Panel Brand : | TIANMA |
| Panel Model : | TM040YDHG32 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.0 inch |
| Resolution : | 480(RGB)×800 , WVGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 51.84×86.4 mm |
| Outline : | 56.34×95.7×1.93 mm |
| Surface : | Hard coating |
| Brightness : | 550 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 67% |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 8S1P WLED Without Driver |
| Signal Interface : | MIPI (2 data lanes) , 25 pins |
| Input Voltage : | (1.8/2.8)/2.8V (Typ.)(IOVCC/VDD) |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
| Panel Size : | 4.0 inch |
| Dot Resolution : | 480(RGB)×800 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 235 PPI |
| Aspect Ratio : | 3:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.036×0.108 mm (H×V) |
| Pixel Pitch : | 0.108×0.108 mm (H×V) |
| Weight : | TBD |
| Surface : | Hard coating |
| Active Area : | 51.84×86.4 mm (H×V) |
| Bezel Area : | 52.84×87.4 mm (H×V) |
| Outline Dimension : | 56.34×95.7 mm (H×V) |
| Outline Depth : | 1.83±0.1 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

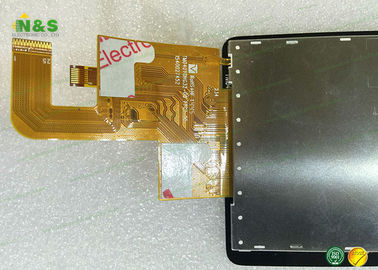

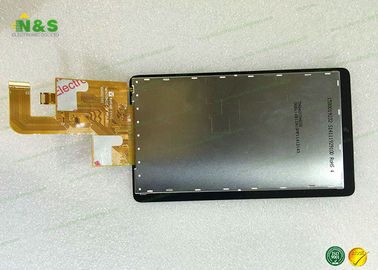

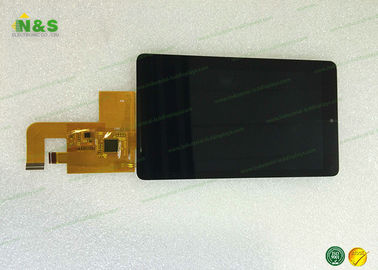

TM040YDHG32 Picture
