PD057VU5 PVI LCD Panel 5.7 inch LCM 320×240 700 600:1 262K WLED TTL

PD057VU5  PVI LCD  Panel  	5.7 inch 	LCM 	320×240  	700 	600:1 	262K 	WLED 	TTL
PD057VU5  PVI LCD  Panel  	5.7 inch 	LCM 	320×240  	700 	600:1 	262K 	WLED 	TTL PD057VU5  PVI LCD  Panel  	5.7 inch 	LCM 	320×240  	700 	600:1 	262K 	WLED 	TTL

Large Image :  PD057VU5 PVI LCD Panel 5.7 inch LCM 320×240 700 600:1 262K WLED TTL

Product Details:
Place of Origin: korea
Brand Name: PVI
Certification: ISO9001
Model Number: PD057VU5
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY

PD057VU5 PVI LCD Panel 5.7 inch LCM 320×240 700 600:1 262K WLED TTL

Description
Panel Brand: PVI Panel Model: PD057VU5
Panel Type: A-Si TFT-LCD , LCM Panel Size: 5.7 Inch
Resolution: 320(RGB)×240 , QVGA Display Mode: TN, Normally White, Transmissive
High Light:

tft lcd screen

,

tft lcd display module

PD057VU5 PVI LCD Panel 5.7 inch LCM 320×240 700 600:1 262K WLED TTL



PD057VU5   Specification

Panel Brand : PVI
Panel Model : PD057VU5
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 5.7 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 115.2×86.4 mm
Outline : 144×104.6×13.3 mm
Surface : Antiglare
Brightness : 700 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S12P WLED Without Driver
Signal Interface : TTL (1 ch, 6-bit) , 33 pins
Input Voltage : 3.3V (Typ.)(VCC)



Panel Size : 5.7 inch
Dot Resolution : 320(RGB)×240 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 70 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.120×0.360 mm (H×V)
Pixel Pitch : 0.360×0.360 mm (H×V)
Weight : 206±10g
Surface : Antiglare
Active Area : 115.2×86.4 mm (H×V)
Bezel Area : 117.2×88.4 mm (H×V)
Outline Dimension : 144×104.6 mm (H×V)
Outline Depth : 13.0±0.3 mm
Holes & Brackets : Rear mounting holes (4-Ф2.6)
Landscape or Portrait : Landscape type
Touch Panel : Without



Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
EK014BS012 PDI 1.44" 128×96
EK014BS011 PDI 1.44" 128×96
EG020BS012 PDI 2.0" 200×96
EG020BS011 PDI 2.0" 200×96
EG020AS013 PDI 2.0" 200×96
EG020AS012 PDI 2.0" 200×96
EM027BS014 PDI 2.7" 264×176

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

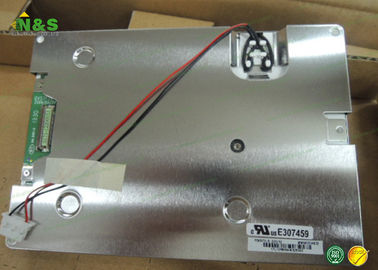

PD057VU5  Picture



PD057VU5  PVI LCD  Panel  	5.7 inch 	LCM 	320×240  	700 	600:1 	262K 	WLED 	TTL 0
