Product Details:
|
| Panel Brand: | PVI | Panel Model: | PA064DS1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.4 Inch |
| Resolution: | 320(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | tft lcd screen,tft lcd display module |
||
PA064DS1 PVI LCD Panel 6.4 inch LCM 320×234 330 350:1 CCFL Analog
PA064DS1 Specification
| Panel Brand : | PVI |
| Panel Model : | PA064DS1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.4 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 129.6×97.34 mm |
| Outline : | 156.3×119.8×14.7 mm |
| Surface : | Antiglare |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Analog RGB + Composite Video (NTSC/PAL) , 20 pins |
| Input Voltage : | 5.0/5.0/17.0/-15.0V (Typ.)(VCC/VDD/VGH/VGL) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Panel Size : | 6.4 inch |
| Dot Resolution : | 320(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 62 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.135×0.416 mm (H×V) |
| Pixel Pitch : | 0.405×0.416 mm (H×V) |
| Weight : | 235±10g |
| Surface : | Antiglare |
| Active Area : | 129.6×97.34 mm (H×V) |
| Bezel Area : | 134.8×101.65 mm (H×V) |
| Outline Dimension : | 156.3×119.8 mm (H×V) |
| Outline Depth : | 8.5/14.7 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting Pole (6-Φ2.3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| PW090XUD | E Ink | 9.0" | 640×220 |
| PW090XUC | E Ink | 9.0" | 640×220 |

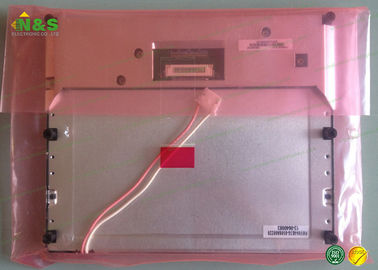

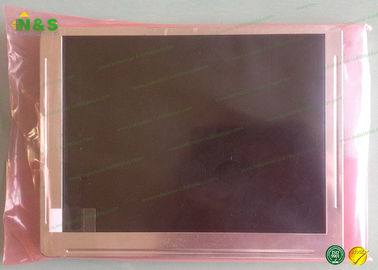

PA064DS1 Picture
