Product Details:
|
| Panel Brand: | AUO | Panel Model: | M170EG01 VH |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 17.0 Inch |
| Resolution: | 1280(RGB)×1024 , SXGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | auo display panel,auo lcd display |
||
337.92×270.336 mm M170EG01 VH AUO LCD Panel 17.0 inch LCM Normally White
M170EG01 VH Specification
| Panel Brand : | AUO |
| Panel Model : | M170EG01 VH 3 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 17.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 337.92×270.336 mm |
| Outline : | 358.5×296.5×15.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 1.99Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.0 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 15.8 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

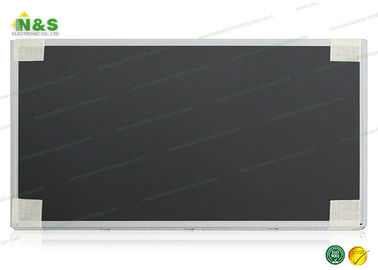

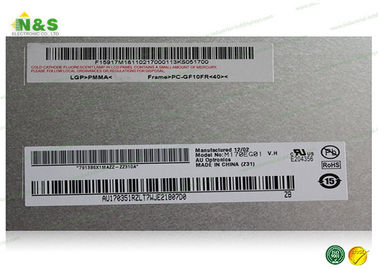

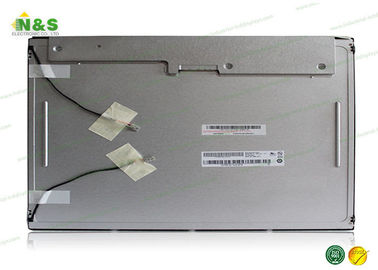

M170EG01 VH Picture
