Product Details:
|
Panel Size: | 12.1 Inch | Resolution: | 800(RGB)×600 , SVGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 41 Pins |
High Light: | sharp lcd display panels,sharp lcd flat screen |
Panel Size : | 12.1 inch |
Dot Resolution : | 800(RGB)×600 (SVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 82 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.1025×0.3075 mm (H×V) |
Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
Weight : | 660g (Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 246×184.5 mm (H×V) |
Bezel Area : | 249.0×187.5 mm (H×V) |
Outline Dimension : | 276×209 mm (H×V) |
Outline Depth : | 11.0 (Max.) mm |
Holes & Brackets : | Face mounting holes (2- 3.4, 2-R1.7) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 370 cd/m² (Typ.) |
Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 10/25 (Typ.)(Tr/Td) |
Viewing Angle : | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25 (Max.)(5 points) |
Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

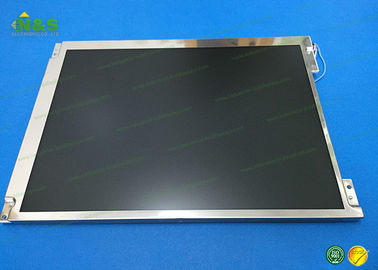

LQ121S1DG43 Picture
