Product Details:
|
| Response Time: | 40 (Max.)(Tr) | Display Colors: | 262K (6-bit) , CIE1931 40% |
|---|---|---|---|
| Brightness: | 100 Cd/m² (Typ.) | Outline: | 289.5×222.5×10.4 Mm |
| High Light: | nec tft lcd,nec lcd screen |
||
13.3 inch Normally White NL10276BC26-02 NEC LCD Panel LCM 1024×768 100 120:1 262K CCFL LVDS
NL10276BC26-02 Detail
| Panel Brand : | NEC |
| Panel Model : | NL10276BC26-02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 13.3 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 270.336×202.752 mm |
| Outline : | 289.5×222.5×10.4 mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface : | |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 120:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 45/45/25/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 6-bit) , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 635/650g (Typ./Max.) |
| Active Area : | 270.336×202.752 mm (H×V) |
| Bezel Area : | 274.4×206.8 mm (H×V) |
| Outline Dimension : | 289.5×222.5 mm (H×V) |
| Outline Depth : | 9.9/10.4 (Typ./Max.) mm |
| Shape Style : | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets : | Face mounting holes (1-Φ3.2; 2-R1.7) on left, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| PW090XUA | E Ink | 9.0" | 640×220 |
| PW090XU8 | E Ink | 9.0" | 640×220 |
| PW090XU7 | E Ink | 9.0" | 640×220 |
| PW090XU6 | E Ink | 9.0" | 640×220 |
| PW090XSA | E Ink | 9.0" | 640×220 |
| PW090XS8 | E Ink | 9.0" | 640×220 |
| PW084XU2 | E Ink | 8.4" | 480×234 |
| PW084XS6 | E Ink | 8.4" | 480×234 |
| PW084XS3 | E Ink | 8.4" | 480×234 |
| PW080XU8 | E Ink | 8.0" | 480×220 |
| PW080XU6 | E Ink | 8.0" | 480×220 |
| PW080XU5 | E Ink | 8.0" | 480×220 |
| PW070XUB | E Ink | 7.0" | 480×234 |
| PW070XU9 | E Ink | 7.0" | 480×234 |
| PW070XU6 | E Ink | 7.0" | 480×234 |
| PW070XU1 | E Ink | 7.0" | 480×234 |

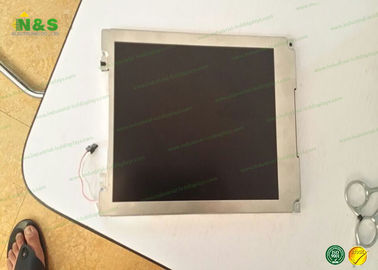

NL10276BC26-02 NEC LCD Panel Picture
