Product Details:
|
| Panel Size :: | 15.6 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area :: | 344.232×193.536 Mm | Outline :: | 363.8×215.9×14.8 Mm |
| Surface :: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness :: | 250 Cd/m² (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

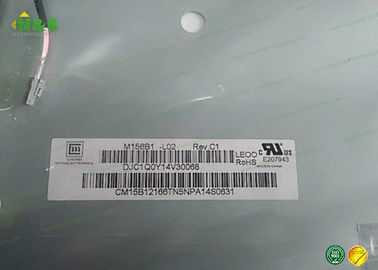

M156B1-L02 Innolux 15.6 inch 344.232×193.536 mm of Desktop Monitor
M156B1-L02 Information
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 1.30Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 347.5×196.8 mm (H×V) |
| Outline Dimension : | 363.8×215.9 mm (H×V) |
| Outline Depth : | 14.3±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 65% NTSC (CIE1931) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.40/1.50 (Typ./Max.)(13 points) |
| Sunlight Readable : | N |
| Amount per Box : | 10 pcs |
| Box Size : | 489×382×330 mm (L×W×H) |
| Box Gross Weight : | 15.7 Kgs |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPa
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50" | 3840×2160 |
| V400DJ1-QS5 | Innolux | 40" | 3840×2160 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| F050A13-601 | Innolux | 5.0" | 720×1280 |
| P097ZCA-1Z2 | Innolux | 9.7" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
