Product Details:
|
Panel Brand: | SAMSUMG | Panel Model: | LTM240W1-L01 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | PVA, Normally Black, Transmissivive |
High Light: | samsung lcd screen,samsung lcd panel replacement |
LTM240W1-L01 SAMSUMG LCD Panel 24.0 inch with 518.4×324 mm Active Area
LTM240W1-L01 Specification
Panel Brand : | SAMSUNG |
Panel Model : | LTM240W1-L01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 24.0 inch |
Resolution : | 1920(RGB)×1200 , WUXGA |
Display Mode : | PVA, Normally Black, Transmissive |
Active Area : | 518.4×324 mm |
Outline : | 569.1×368.4 mm |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : | 220 cd/m² (Typ.) |
Contrast Ratio : | 400:1 (Min.) |
Display Colors : | 16.7M (8-bit) |
Response Time : | 13/17 (Typ.)(Tr/Td) |
Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 6 pcs CCFL Without Driver |
Signal Interface : | OpenLDI , 43 pins |
Input Voltage : | 5.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LK315T3HC1K | SHARP | 31.5" | 1366×768 |
LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
Panel Size : | 24.0 inch |
Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 94 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.090×0.270 mm (H×V) |
Pixel Pitch : | 0.270×0.270 mm (H×V) |
Weight : | 5.60Kgs (Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 518.4×324 mm (H×V) |
Bezel Area : | 522.4×328.0 mm (H×V) |
Outline Dimension : | 569.1×368.4 mm (H×V) |
Outline Depth : | 32.0 (Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.

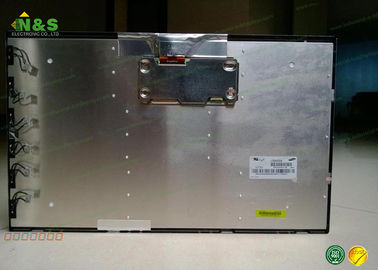

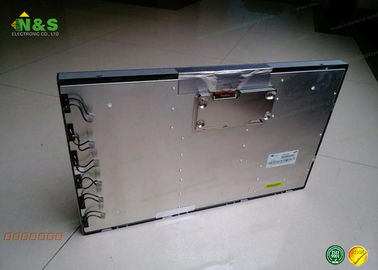

LTM240W1-L01 Picture
