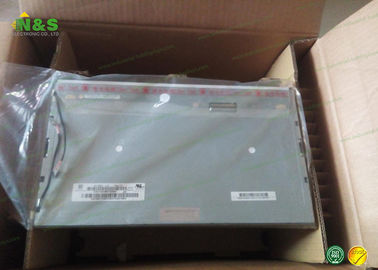

15.6 inch M156B1-L01 Innolux LCM 1366×768 250 500:1 16.7M 1366(RGB)×768

15.6 inch M156B1-L01 Innolux  LCM 1366×768 250 500:1 16.7M   1366(RGB)×768
15.6 inch M156B1-L01 Innolux  LCM 1366×768 250 500:1 16.7M   1366(RGB)×768

Large Image :  15.6 inch M156B1-L01 Innolux LCM 1366×768 250 500:1 16.7M 1366(RGB)×768

Product Details:
Place of Origin: KOREA
Brand Name: Innolux
Certification: ISO9001
Model Number: M156B1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

15.6 inch M156B1-L01 Innolux LCM 1366×768 250 500:1 16.7M 1366(RGB)×768

Description
Panel Size :: 15.6 Inch Resolution :: 1366(RGB)×768 , WXGA
Active Area :: 344.232×193.536 Mm Outline :: 363.8×215.9×14.8 Mm
Surface :: Antiglare (Haze 25%), Hard Coating (3H) Brightness :: 250 Cd/m² (Typ.)
High Light:

lcd display panel

,

innolux lcd screen

15.6 inch M156B1-L01 Innolux LCM 1366×768 250 500:1 16.7M 1366(RGB)×768



Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.



M156B1-L01 Information



Panel Size : 15.6 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 100 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.084×0.252 mm (H×V)
Pixel Pitch : 0.252×0.252 mm (H×V)
Weight : 1.30Kgs (Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 344.232×193.536 mm (H×V)
Bezel Area : 347.5×196.8 mm (H×V)
Outline Dimension : 363.8×215.9 mm (H×V)
Outline Depth : 14.3±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 65% NTSC (CIE1931)
Response Time : 2/6 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.40/1.50 (Typ./Max.)(13 points)
Sunlight Readable : N
Amount per Box : 10 pcs
Box Size : 490×325×330 mm (L×W×H)
Box Gross Weight : 15.3 Kgs



Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M238HCJ-P02 Innolux 23.8" 1920×1080
ME270NA-01A Innolux 27.0" 1920×1080
N156BGE-PB1 Innolux 15.6" 1366×768
PP050IC-01F Innolux 5.0" 720×1280
P060DDZ-ZZ1 Innolux 6.0" 800×1280
ME236NA-01A Innolux 23.6" 1920×1080
F055A07-601 Innolux 5.5" 720×1280
F050A07-6T2 Innolux 5.0" 720×1280
V650HP1-PS6 Rev.C6 Innolux 65" 1920×1080
P101LCA-3P1 Innolux 10.1" 1920×1200
V650HP2-PS5 Innolux 65" 1920×1080
N156HGE-DB1 Innolux 15.6" 1920×1080



We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
