Product Details:
|
Panel Brand: | SAMSUMG | Panel Model: | LTM215HT05 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 21.5 Inch |
Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | PLS, Normally Black, Transmissive |
High Light: | samsung lcd screen,samsung lcd panel replacement |
Normally White LTM215HT05 SAMSUMG LCD Panel 21.5 inch with 476.64×268.11 mm
LTM215HT05 Detail
Panel Brand : | SAMSUNG |
Panel Model : | LTM215HT05 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 21.5 inch |
Resolution : | 1920(RGB)×1080 , FHD |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 476.64×268.11 mm |
Outline : | 495.6×292.2×10.7 mm |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000:1 (Typ.) |
Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
Response Time : | 5 (Typ.)(Tr+Td) |
Viewing Angle : | 85/85/80/80 (Typ.)(CR≥5) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 10S3P WLED Without Driver |
Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
Input Voltage : | 5.0V (Typ.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
AMS499QP07 | Samsung | 5.0" | 1080×1920 |
AMS499QP01 | Samsung | 5.0" | 1080×1920 |
AMS568AT01 | Samsung | 5.7" | 1440×2560 |
AMS840CS04 | Samsung | 8.4" | 1600×2560 |
AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
AMS309PW01-0 | Samsung | 3.1" | 720×720 |
AMS465GS45 | Samsung | 4.7" | 720×1280 |
AMS477GV07 | Samsung | 4.8" | 720×1280 |
AMS429QC12 | Samsung | 4.3" | 540×960 |
AMS465GS53 | Samsung | 4.7" | 720×1280 |
AMS470GS16-1 | Samsung | 4.7" | 720×1280 |
Panel Size : | 21.5 inch |
Dot Resolution : | 1920(RGB)×1080 (FHD) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 102 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.08275×0.24825 mm (H×V) |
Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
Weight : | 1.98Kgs (Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 476.64×268.11 mm (H×V) |
Bezel Area : | 479.8×271.3 mm (H×V) |
Outline Dimension : | 495.6×292.2 mm (H×V) |
Outline Depth : | 10.2/10.7 (Typ./Max.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

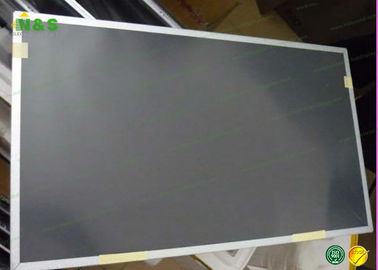

LTM215HT05 Picture
