Product Details:
|
Panel Brand: | SAMSUMG | Panel Model: | LTM215HL01 |
---|---|---|---|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 21.5 Inch |
Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | PLS, Normally Black, Transmissive |
High Light: | samsung lcd screen,samsung lcd display panel |
LTM215HL01 SAMSUMG LCD Panel 21.5 inch LCM 1920×1080 250 1000:1 16.7M WLED LVDS
LTM215HL01 Specification
Panel Brand : | SAMSUNG |
Panel Model : | LTM215HL01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 21.5 inch |
Resolution : | 1920(RGB)×1080 , FHD |
Display Mode : | PLS, Normally Black, Transmissive |
Active Area : | 476.064×267.786 mm |
Outline : | 497.6×292.2×11 mm |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000:1 (Typ.) |
Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
Response Time : | 14 (Typ.)(G to G) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 16S2P WLED Without Driver |
Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
Input Voltage : | 5.0V (Typ.) |
Panel Size : | 21.5 inch |
Dot Resolution : | 1920(RGB)×1080 (FHD) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 102 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.08265×0.24795 mm (H×V) |
Pixel Pitch : | 0.24795×0.24795 mm (H×V) |
Weight : | 2.10Kgs (Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 476.064×267.786 mm (H×V) |
Bezel Area : | 479.8×271.3 mm (H×V) |
Outline Dimension : | 497.6×292.2 mm (H×V) |
Outline Depth : | 11.0 (Max.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
AMS549HQ02 | Samsung | 5.5" | 720×1280 |
AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
AMS163AN01 | Samsung | 1.63" | 320×320 |
AMS510CV02 | Samsung | 5.1" | 1080×1920 |
AMS510CV01 | Samsung | 5.1" | 1080×1920 |
AMS302AK03 | Samsung | 3.0" | 720×480 |
AMS353FD01-0 | Samsung | 3.5" | 480×800 |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

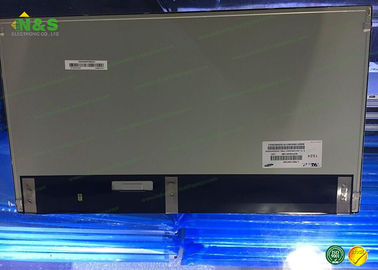

LTM215HL01 Picture
