Product Details:
|
| Panel Size :: | 46 Inch | Resolution :: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Surface :: | Antiglare (Haze 14%), Hard Coating (3H) | Brightness :: | 470 Cd/m² (Typ.) |
| Contrast Ratio :: | 3000:1 (Typ.) | Display Colors :: | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC) , CIE1931 72% |
| Response Time :: | 8/6 (Typ.)(Tr/Td); 8 (Typ.)(G To G) | Viewing Angle :: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

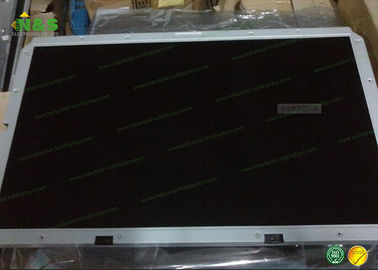

46 Inch LTY460HC03 Industrial Lcd Panel 1920×1080 470 with 1018.08×572.67 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LTY460HC03 Information
| Panel Size : | 46 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 47 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.17675×0.53025 mm (H×V) |
| Pixel Pitch : | 0.53025×0.53025 mm (H×V) |
| Weight : | 15.5Kgs (Max.) |
| Surface : | Antiglare (Haze 14%), Hard coating (3H) |
| Active Area : | 1018.08×572.67 mm (H×V) |
| Outline Dimension : | 1083×627 mm (H×V) |
| Outline Depth : | 58 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | SPVA, Normally Black, Transmissive |
| Brightness : | 470 cd/m² (Typ.) |
| Contrast Ratio : | 3000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 8/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.280; Wy:0.290 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
| Vertical Frequency : | 120Hz (60Hz Input) |
| Reverse Scan : | No |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP42-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY01 | Samsung | 5.3" | 1080×1920 |
| AMS309PW03-0 | Samsung | 3.1" | 720×720 |
| AMS497QH02 | Samsung | 5.0" | 720×1280 |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
