Product Details:
|
| Panel Size :: | 3.5 Inch | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Active Area :: | 70.08×52.56 Mm | Outline :: | 76.9×63.9×4.45 Mm |
| Display Colors :: | 16.7M (8-bit) | Viewing Angle :: | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

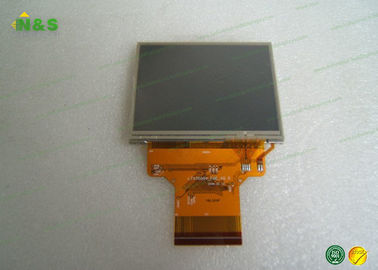

LTV350QV-F0E Samsung 3.5 inch for All Pocket TV 320 300:1 16.7M WLED TTL
LTV350QV-F0E Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 43/48g (Typ./Max.) |
| Surface : | Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.08×54.56 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Film-Glass) |
| Display Mode : | TN, Normally White, TMR |
| Brightness : | 320 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.330; Wy:0.370 |
| Sunlight Readable : | Y |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S1P |
| Lamp Shape : | 1 string |
| Lamp Current : | 20mA (Typ.) |
| Lamps Power Consumption : | 400mW (Typ.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
