Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Brightness: | 400 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 800:1 (Typ.) | Response Time: | 14/11 (Typ.)(Tr/Td) |
| Display Colors: | 16.7M (8-bit) | Resolution: | 1280(RGB)×800 , WXGA |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Surface: | Glare (Haze 0%), Hard Coating (3H) |
| High Light: | tft lcd display,lcd display panel |
||
Hard coating N070ICG-L21 7 inch tft lcd display with 149.76×93.6 mm Active Area
N070ICG-L21 Innolux LCD Panel Specification
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | N070ICG-L21 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 149.76×93.6 mm |
| Outline : | 161×107×4.06 mm |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 80g (Max.) |
| Surface : | Glare (Haze 0%), Hard coating (3H) |
| Active Area : | 149.76×93.6 mm (H×V) |
| Bezel Area : | 151.76×95.6 mm (H×V) |
| Outline Dimension : | 161×107 mm (H×V) |
| Outline Depth : | 2.15/4.06 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
1.ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| Innolux | G057VGE-T01 | 5.7" | 852 |
| Innolux | G070Y2-T02 | 7.0" | 2320 |
| Innolux | G070Y3-T01 | 7.0" | 1580 |
| Innolux | G104S1-L01 | 10.4" | 850 |
| Innolux | G141C1-L01 | 14.1" | 450 |
| Innolux | R190E6-L01 | 19.0" | 150 |
| Innolux | R196U2-L03 | 19.6" | 450 |
| Innolux | G260JJE-L07 | 25.5" | 100 |
| Innolux | AT056TN52 V.5 | 5.6" | 1200 |
| INNOLUX | LW700AT6005 | 7.0" | 2000 |
| innolux | HJ080IA-01E | 8" | 450 |

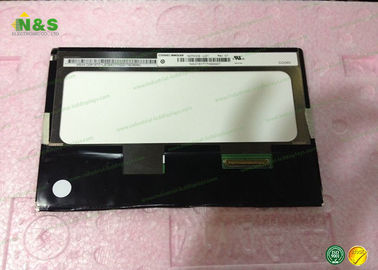

N070ICG-L21 Innolux LCD Panel Picture
