Product Details:
|
| Panel Model: | M270HW02 V3 | Panel Brand: | AUO |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Outline: | 630×368.2×10.5 Mm |
| Contrast Ratio: | 5000:1 (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Display Mode: | VA, Normally Black, Transmissive | Frequency: | 120Hz |
| High Light: | auo display panel,auo lcd display |
||
Hard coating 27.0 inch tft lcd module M270HW02 V3 with 597.6×336.15 mm
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Panel Brand : | AUO |
| Panel Model : | M270HW02 V3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 27.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | VA, Normally Black, Transmissive |
| Active Area : | 597.6×336.15 mm |
| Outline : | 630×368.2×10.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 5000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 120Hz |
| Lamp Type : | 17S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Panel Size : | 27.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10375×0.31125 mm (H×V) |
| Pixel Pitch : | 0.31125×0.31125 mm (H×V) |
| Weight : | 2.35Kgs |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 597.6×336.15 mm (H×V) |
| Bezel Area : | 601.6×340.15 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 7.18/10.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

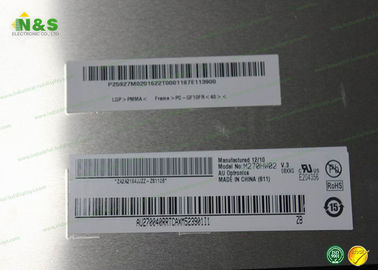

M270HW02 V3 AUO LCD Panel Picture
