Product Details:
|
| Panel Mode: | M270HW01 V2 | Panel Brand: | AUO |
|---|---|---|---|
| Panel Size: | 27.0 Inch | Resolution: | 1920(RGB)×1080 , FHD |
| Panel Type: | A-Si TFT-LCD , LCM | Active Area: | 597.6×336.15 Mm |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | auo display panel,auo lcd display |
||
M270HW01 V2 AUO industrial lcd screen 597.6×336.15 mm for Desktop Monitor
M270HW01 V2 Specification
| Panel Brand : | AUO |
| Panel Model : | M270HW01 V2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 27.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 597.6×336.15 mm |
| Outline : | 630×368.2 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 15S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Panel Size : | 27.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 81 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10375×0.31125 mm (H×V) |
| Pixel Pitch : | 0.31125×0.31125 mm (H×V) |
| Weight : | 2.86Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 597.6×336.15 mm (H×V) |
| Bezel Area : | 603.9×342.3 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 14.1 (Typ.) mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
| B080EAN04.1 CELL | AUO | 8.0" | 800×1280 |
| T500HVN08.8 CELL | AUO | 50" | 1920×1080 |
| H546DAN01.5 | AUO | 5.5" | 1080×1920 |
| H546DAN08.0 | AUO | 5.5" | 1080×1920 |
| B080XAN03.5 | AUO | 7.9" | 768×1024 |
| B080XAN03.2 | AUO | 7.9" | 768×1024 |

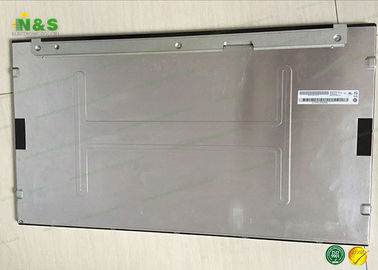

M270HW01 V2 AUO LCD Panel Picture
