27.0 M270H1-L01 industrial flat panel display with 597.888×336.312 mm Active Area

27.0 M270H1-L01 industrial flat panel display with 597.888×336.312 mm Active Area
27.0 M270H1-L01 industrial flat panel display with 597.888×336.312 mm Active Area

Large Image :  27.0 M270H1-L01 industrial flat panel display with 597.888×336.312 mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: Innolux
Certification: ISO9001
Model Number: M270H1-L01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

27.0 M270H1-L01 industrial flat panel display with 597.888×336.312 mm Active Area

Description
Panel Type: A-Si TFT-LCD , LCM Resolution: 1920(RGB)×1080 , FHD
Active Area: 597.888×336.312 Mm Surface: Antiglare (Haze 25%), Hard Coating (3H)
High Light:

tft lcd display

,

lcd display panel

Normally White 27.0 inch M270H1-L01 Innolux LCD Panel with 597.888×336.312 mm Active Area



M270H1-L01 Innolux LCD Panel Specification

Panel Brand : CMO
Panel Model : M270H1-L01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 27.0 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 597.888×336.312 mm
Outline : 630×368.2 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 1200:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 0.8/2.6 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

  1. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

  1. long-term partner:

* Products are sold to more than 20 countries.

  1. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

To get the latest prices, pls feel free to contact us.



Panel Size : 27.0 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 81 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1038×0.3114 mm (H×V)
Pixel Pitch : 0.3114×0.3114 mm (H×V)
Weight : 3.75/3.80Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 597.888×336.312 mm (H×V)
Bezel Area : 603.9×342.3 mm (H×V)
Outline Dimension : 630×368.2 mm (H×V)
Outline Depth : 17.5±0.5 mm
Holes & Brackets : Side mounting holes (4-M3)
Landscape or Portrait : Landscape type
Touch Panel : Without



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
N156BGE-PB1 Innolux 15.6" 1366×768
PP050IC-01F Innolux 5.0" 720×1280
P060DDZ-ZZ1 Innolux 6.0" 800×1280
ME236NA-01A Innolux 23.6" 1920×1080
F055A07-601 Innolux 5.5" 720×1280
F050A07-6T2 Innolux 5.0" 720×1280
V650HP1-PS6 Rev.C6 Innolux 65" 1920×1080
P101LCA-3P1 Innolux 10.1" 1920×1200
V650HP2-PS5 Innolux 65" 1920×1080
N156HGE-DB1 Innolux 15.6" 1920×1080
V500DJ4-QS1 Innolux 50" 3840×2160
V500DJ2-QS5 Innolux 50" 3840×2160
V400DJ1-QS5 Innolux 40" 3840×2160
P089DCZ-3A1 Innolux 8.9" 800×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

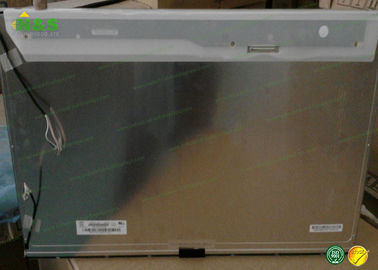

M270H1-L01 Innolux LCD Panel Picture
