Product Details:
|
| Active Area: | 596.736×335.664 Mm | Display Colors: | 1.07B (8-bit + Hi-FRC) , Adobe |
|---|---|---|---|
| Contrast Ratio: | 1000:1 (Typ.) | Response Time: | 12 (Typ.)(Tr+Td) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Signal Interface: | LVDS (4 Ch, 10-bit) , 92 Pins | Input Voltage: | 5.0V (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
M270DAN01.1 AUO LCD Panel , medical lcd display 596.736×335.664 mm Active Area
M270DAN01.1 Information
| Panel Brand : | AUO |
| Panel Model : | M270DAN01.1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 27.0 inch |
| Resolution : | 2560(RGB)×1440 , Quad-HD |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Active Area : | 596.736×335.664 mm |
| Outline : | 630×368.2×15.55 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 1.07B (8-bit + Hi-FRC) , Adobe |
| Response Time : | 12 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | GB-LED Without Driver |
| Signal Interface : | LVDS (4 ch, 10-bit) , 92 pins |
| Input Voltage : | 5.0V (Typ.) |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H598QAN01.0 | AUO | 6.0" | 1440×2560 |
| T430HVN01.2 CELL | AUO | 43" | 1920×1080 |
| H495TAN01.2 | AUO | 5.0" | 720×1280 |
| T650QVN04.5 CELL | AUO | 65" | 3840×2160 |
| M320DVN01.0 CELL | AUO | 32.0" | 2560×1440 |
| M238HVN01.0 CELL | AUO | 23.8" | 1920×1080 |
| M238HVN01.2 CELL | AUO | 23.8" | 1920×1080 |
| T320XVN02.F CELL | AUO | 31.5" | 1366×768 |
| T430HVN01.6 CELL | AUO | 43" | 1920×1080 |
| B101EAN01.2 CELL | AUO | 10.1" | 1280×800 |
| Panel Size : | 27.0 inch |
| Dot Resolution : | 2560(RGB)×1440 (Quad-HD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 108 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0777×0.2331 mm (H×V) |
| Pixel Pitch : | 0.2331×0.2331 mm (H×V) |
| Weight : | 3.20Kgs |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 596.736×335.664 mm (H×V) |
| Bezel Area : | 601.6×340.15 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 11.2/15.55 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.

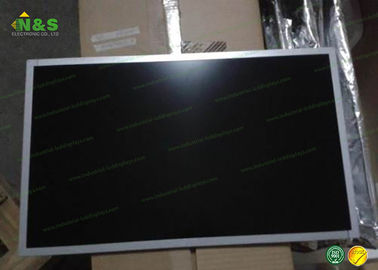

M270DAN01.1 AUO LCD Panel Picture
