Product Details:
|
| Panel Model: | M240J1-L03 | Resolution: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Active Area: | 518.4×324 Mm | Outline: | 546.4×352 Mm |
| Contrast Ratio: | 1000:1 (Typ.) | Display Colors: | 16.7M (8-bit) |
| Response Time: | 13/7 (Typ.)(Tr/Td); 8 (Typ.)(G To G) | Viewing Angle: | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
24.0 inch CMO M240J1-L03 LCD Displays Hard coating with 518.4×324 mm Active Area
CMO M240J1-L03 LCD Displays Specification
| Panel Brand : | CMO |
| Panel Model : | M240J1-L03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | Super MVA, Normally Black, Transmissive |
| Active Area : | 518.4×324 mm |
| Outline : | 546.4×352 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 13/7 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| P1924QC1 | E Ink | 2.4" | 240×320 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| V1835HC1H1 | E Ink | 3.5" | 320×480 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| E Ink | 9.0" | 640×220 |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.00Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 41.2/41.7 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

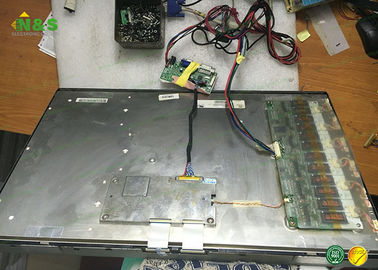

M240J1-L03 Innolux LCD Panel Picture
