M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm

M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm
M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm

Large Image :  M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: M240HW02 V6
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY

M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm

Description
Brightness: 250 Cd/m² (Typ.) Frequency: 60Hz
Signal Interface: LVDS (2 Ch, 8-bit) , 30 Pins Display Colors: 16.7M (8-bit) , CIE1931 72%
High Light:

auo lcd screen

,

auo lcd display



M240HW02 V6 Anti Glare Lcd Screen , Desktop Monitor Auo Display Panel 531.36×298.89 mm



M240HW02 V6 Specification

Panel Brand : AUO
Panel Model : M240HW02 V6
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 24.0 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : VA, Normally Black, Transmissive
Active Area : 531.36×298.89 mm
Outline : 556×323.2×12 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 5000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 7/5 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 14S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Panel Size : 24.0 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09225×0.27675 mm (H×V)
Pixel Pitch : 0.27675×0.27675 mm (H×V)
Weight : 2.05Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 531.36×298.89 mm (H×V)
Bezel Area : 535.36×302.89 mm (H×V)
Outline Dimension : 556×323.2 mm (H×V)
Outline Depth : 9.3/12.0 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
M270HVN02.1 CELL AUO 27.0" 1920×1080
M270DTN01.0 CELL AUO 27.0" 2560×1440
T320HVN05.7 CELL AUO 31.5" 1920×1080
T320HVN05.4 CELL AUO 31.5" 1920×1080
T215HVN01.2 CELL AUO 21.5" 1920×1080
B070ATN02.0 CELL AUO 7.0" 600×1024
M238DAN01.3 CELL AUO 23.8" 2560×1440
B070AAN01.0 AUO 7.0" 600×1024
M238DAN01.1 CELL AUO 23.8" 2560×1440
M270DAN02.0 CELL AUO 27.0" 2560×1440
H598DAN03.0 AUO 6.0" 1080×1920
H546TAN02.3 AUO 5.5" 720×1280
G173HW01 V0 CELL AUO 17.3" 1920×1080
T320HVN05.A CELL AUO 31.5" 1920×1080
B080EAN04.1 CELL AUO 8.0" 800×1280



Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.



Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

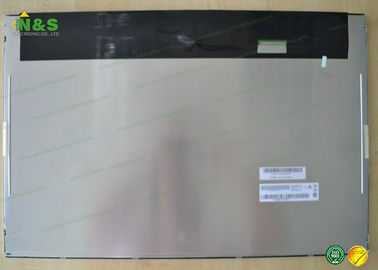

M240HW02 V6 AUO LCD Panel Picture
