Product Details:
|
| Resolution: | 1920(RGB)×1080 , FHD | Active Area: | 531.36×298.89 Mm |
|---|---|---|---|
| Contrast Ratio: | 1000:1 (Typ.) | Response Time: | 3.5/1.5 (Typ.)(Tr/Td) |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Display Mode: | TN, Normally White, Transmissive |
| High Light: | auo display panel,auo lcd display |
||
24.0 Inch M240HW01 VB AUO LCD Panel Hard coating for Desktop Monitor panel
M240HW01 VB Product Information
| Panel Brand : | AUO |
| Panel Model : | M240HW01 VB |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 531.36×298.89 mm |
| Outline : | 556×323.2×12 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 68% |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 11S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 2.10±0.08Kgs |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 531.36×298.89 mm (H×V) |
| Bezel Area : | 535.4×303.0 mm (H×V) |
| Outline Dimension : | 556×323.2 mm (H×V) |
| Outline Depth : | 9.1/12.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (2-M3) on left bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |
| H429ALN01 V0 | AUO | 4.3" | 540×960 |
| H139BLN01.1 | AUO | 1.39" | 400×400 |
| H163QLN01.1 | AUO | 1.63" | 320×320 |
| H497TLB01 | AUO | 5.0" | 720×1280 |
| H497TLB01.0 | AUO | 5.0" | 720×1280 |
| M350DVR01.1 CELL | AUO | 35.0" | 2560×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

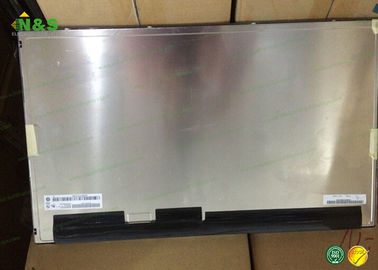

M240HW01 VB AUO LCD Panel Picture
