Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen

Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen
Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen

Large Image :  Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: M240HW01 V7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram,
Supply Ability: 500PCS/DAY

Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen

Description
Surface: Antiglare, Hard Coating (3H) Display Colors: 16.7M (6-bit + Hi-FRC)
Frequency: 60Hz Contrast Ratio: 1000:1 (Typ.)
High Light:

auo lcd screen

,

auo lcd display

Flat Rectangle auo lcd screen M240HW01 V7 , Desktop Monitor anti glare lcd screen



M240HW01 V7 Detail

Panel Brand : AUO
Panel Model : M240HW01 V7
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 24.0 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 531.36×298.89 mm
Outline : 556×323.2×12 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 3.5/1.5 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)



Panel Size : 24.0 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 91 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.09225×0.27675 mm (H×V)
Pixel Pitch : 0.27675×0.27675 mm (H×V)
Weight : 2.57Kgs (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 531.36×298.89 mm (H×V)
Bezel Area : 535.4×302.9 mm (H×V)
Outline Dimension : 556×323.2 mm (H×V)
Outline Depth : 12.0 (Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M238DAN01.1 CELL AUO 23.8" 2560×1440
M270DAN02.0 CELL AUO 27.0" 2560×1440
H598DAN03.0 AUO 6.0" 1080×1920
H546TAN02.3 AUO 5.5" 720×1280
G173HW01 V0 CELL AUO 17.3" 1920×1080
T320HVN05.A CELL AUO 31.5" 1920×1080
B080EAN04.1 CELL AUO 8.0" 800×1280
T500HVN08.8 CELL AUO 50" 1920×1080
H546DAN01.5 AUO 5.5" 1080×1920
H546DAN08.0 AUO 5.5" 1080×1920
B080XAN03.5 AUO 7.9" 768×1024
B080XAN03.2 AUO 7.9" 768×1024
H499TAN05.0 AUO 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2.Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3.Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4.After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

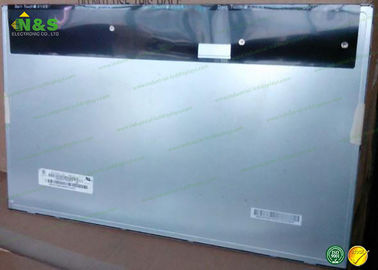

M240HW01 V7 AUO LCD Panel Picture
