Product Details:
|
Panel Size: | 12.1 Inch | Resolution: | 1024(RGB)×768 , XGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
High Light: | industrial lcd screen,industrial lcd panel |
Panel Size : | 12.1 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 105 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.080×0.240 mm (H×V) |
Pixel Pitch : | 0.240×0.240 mm (H×V) |
Weight : | 275g (Typ.) |
Active Area : | 245.76×184.32 mm (H×V) |
Bezel Area : | 249.9×188.0 mm (H×V) |
Outline Dimension : | 261×199 mm (H×V) |
Outline Depth : | 4.7±0.3 mm |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : |
| |
Brightness : | 150 cd/m² (Typ.) | |
Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
Display Color : | 262K (6-bit) | |
Response Time : | 10/20 (Typ.)(Tr/Td) | |
Viewing Angle : | 45/45/20/50 (Typ.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | 6 o'clock | |
White color Chromaticity : |
| |
White Variation : | 1.17/1.25 (Typ./Max.)(5 points) | |
Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TF022TUYC8 | TPO | 2.2" | 240×320 |
TF020TUVB2 | TPO | 2.0" | 176×220 |
TE025THZB4 | TPO | 2.5" | 640×240 |
AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
TF020TUYB1 | TPO | 2.0" | 176×220 |
TF018TUYR1 | TPO | 1.8" | 128×160 |
TF018TUYG1 | TPO | 1.8" | 128×160 |
T026TVE001 | TPO | 2.6" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

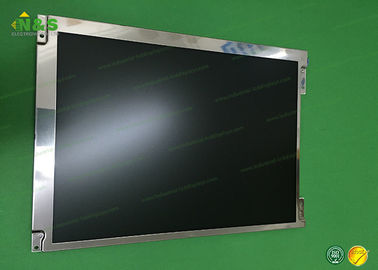

HT12X14-100 Picture
