Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | IPS, Normally Black, Transmissive |
| Active Area: | 246×184.5 Mm | Outline: | 280×210 Mm |
| High Light: | nec tft lcd,nec lcd screen |
||

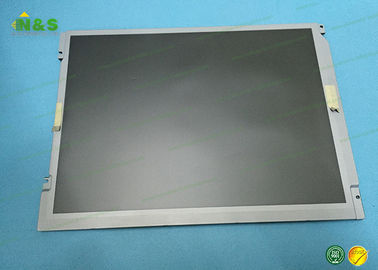

Normally White NL8060BC31-28E NEC LCD Panel 12.1 inch with 246×184.5 mm
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
NL8060BC31-28E Information
| Panel Size : | 12.1 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 82 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch : | 0.3075×0.3075 mm (H×V) |
| Surface : | Antiglare |
| Active Area : | 246×184.5 mm (H×V) |
| Outline Dimension : | 280×210 mm (H×V) |
| Outline Depth : | 13.0/13.7 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 33 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/45/55 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
