Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 210.4×157.8 Mm | Outline: | 240.6×190.8×15.1 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

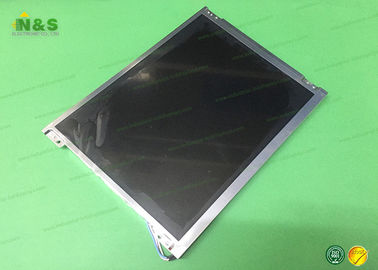

10.4 inch AA104XF02-CE-01 TFT LCD Module Mitsubishi with b210.4×157.8 mm Active Area
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA121SA01 | Mitsubishi | 12.1" | 800×600 |
| AA057QB03 | Mitsubishi | 5.7" | 320×240 |
| AA084SL03 | Mitsubishi | 8.4" | 800×600 |
| AA104XD02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA084XB01--T2 | Mitsubishi | 8.4" | 1024×768 |
| AA104XE01 | Mitsubishi | 10.4" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
AA104XF02-CE-01 DETAIL
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 820g |
| Surface : | Antireflection |
| Active Area : | 210.4×157.8 mm (H×V) |
| Outline Dimension : | 240.6×190.8 mm (H×V) |
| Outline Depth : | 14.1±1 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Projected Capacitive Touch) |
| Panel Cover : | With Strengthened Cover Glass |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 8-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.30 (Max.)(5 points) |
| Sunlight Readable : | Y |
