Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 210.4×157.8 Mm | Outline: | 241×180.2×11 Mm |
| High Light: | tft lcd screen,tft lcd display module |
||

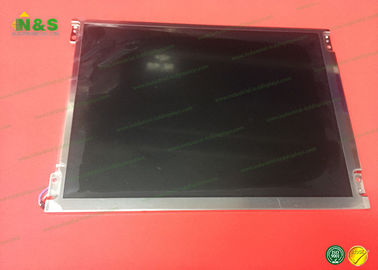

AA104XD01 TFT LCD Module Mitsubishi 10.4 LCM 1024×768 600 700:1 262K/16.7M WLED LVDS
Our Advantages
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150QB01 | Mitsubishi | 15.0" | 1280×960 |
| AA150QA02 | Mitsubishi | 15.0" | 1280×960 |
| AA150QA01 | Mitsubishi | 15.0" | 1280×960 |
| AA142XE02 | Mitsubishi | 14.2" | 1024×768 |
| AA142XE01 | Mitsubishi | 14.2" | 1024×768 |
| AA142XD11 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC11 | Mitsubishi | 14.2" | 1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
AA104XD01 DETAIL
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 520g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 210.4×157.8 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 241×180.2 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut : | 39% NTSC (CIE1931) |
| Response Time : | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/65/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | N |
